Learning Objectives

After completing this lesson, you’ll be able to:

• Set reader and writer parameters.
• Set reader and writer feature type parameters.

Instructions

In this lesson, you will:

• Scroll down to read the text below.
• Complete the exercise by following the steps.
• Complete the Quiz toward the bottom of the page.
• Optional: Let us know if you found this lesson relevant to your role by filling out the survey at the bottom of the page.
• Click 'Next' to mark the lesson complete.

Resources

• Starting workspace
  • C:\FMEData\Workspaces\UseDataIntegrationBestPractices\set-reader-and-writer-parameters.fmw
• Complete workspace
  • C:\FMEData\Workspaces\UseDataIntegrationBestPractices\set-reader-and-writer-parameters-complete.fmw
• CommunityMapping GDB
  • C:\FMEData\Data\CommunityMapping\CommunityMap.gdb

Reader Parameters

As we know, a workspace contains a reader to read a dataset, and each feature type in that dataset is shown in the workspace canvas:

To control how the reader operates requires the use of reader parameters.

Finding Reader Parameters

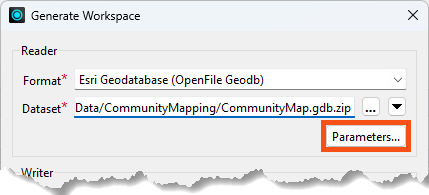

You can find reader parameters by clicking Parameters in the Generate Workspace or Add Reader dialogs:

⭐ New for FME 2026.1: The Coordinate System parameter no longer appears on the Add Reader and Add Writer dialogs. You can now access it with the rest of the reader and writer parameters. The Parameters button has moved from left to right.

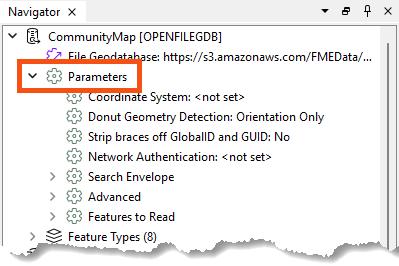

They can also be found in the Navigator window in Workbench:

Because parameters refer to specific components and characteristics of the related format, readers of different formats have different control parameters.

Setting Reader Parameters

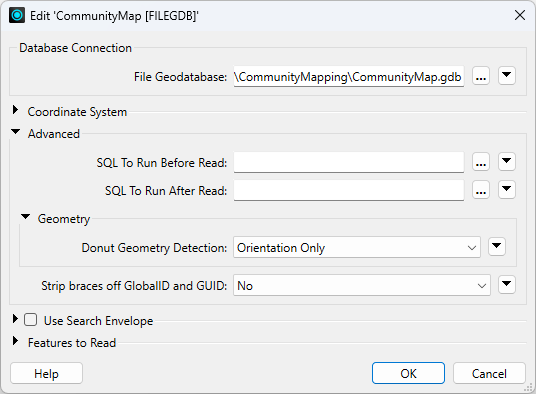

Double-click on any parameters to edit a parameter in the Navigator window. Doing so opens up a dialog where you can set the parameter’s value.

Reader parameters control all feature types in the dataset. Think of it like brewing a pot of coffee. The strength control on the coffee machine affects all the cups poured.

Because some reader parameters affect how feature types are generated, they can only be set when you add the reader. If you set them incorrectly or want to change them, you have to delete the reader and add it again.

An example is the Group Entities By attribute for the Autodesk AutoCAD DWG/DXF format.  This attribute impacts how feature types are formed and can only be set when you add the reader.

This behavior does not exist in writer parameters.

Writer Parameters

Like readers, we know a workspace contains a writer to write a dataset, and each feature type to be written is shown in the workspace canvas:

To control how that writer operates requires the use of writer parameters.

Finding Writer Parameters

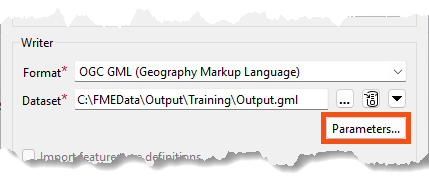

Writer parameters can be located and set by clicking Parameters when a new workspace is being generated:

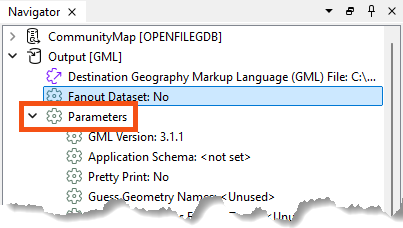

They can also be found in the Navigator window in Workbench:

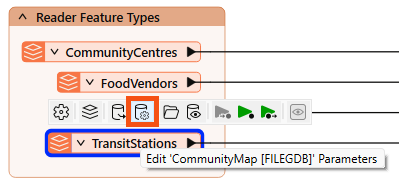

Finally, there is a button that appears when you select feature types that can take you directly to the reader/writer parameters:

Because parameters refer to specific components and characteristics of the related format, writers of different formats have different control parameters.

Setting Writer Parameters

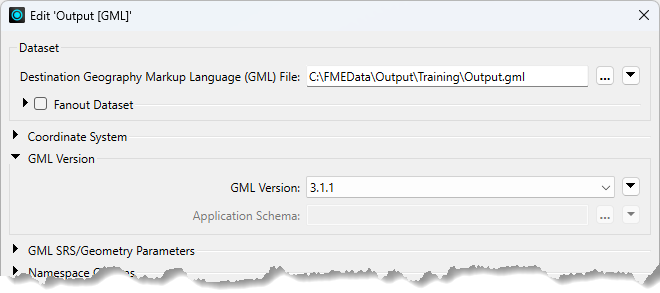

Double-click on any parameters to edit a parameter in the Navigator window. Doing so opens up a dialog where the parameter’s value may be set:

Like readers, writer parameters control all feature types in the dataset. In the above screenshot, all feature types are version 3.1.1.

However, each reader and writer feature type has settings, just as each cup of coffee can be adjusted with cream and sugar. You can learn more in the documentation.

Setting Reader and Writer Feature Type Parameters

Feature types also have parameters controlling how FME reads or writes a table, layer, or other data group.

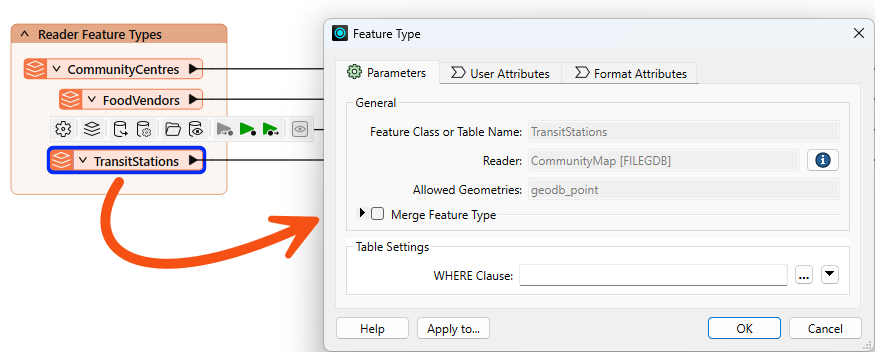

You can view and edit these parameters by double-clicking a feature type to open the Feature Type dialog:

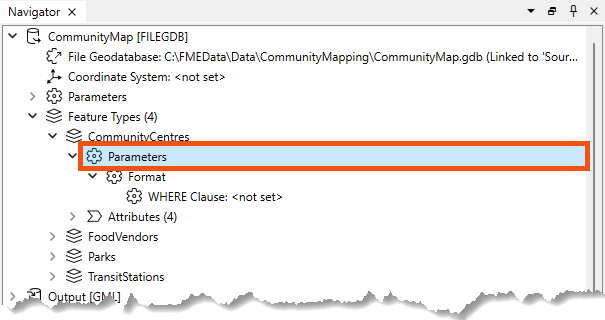

You can also find them in the Navigator under the reader or writer > Feature Types > feature type name > Parameters:

Like reader and writer parameters, the options available here vary by format.

For example, with the Esri File Geodatabase Open API reader, reader feature types have a single parameter: a WHERE Clause that can be used to restrict data on reading:

Use this parameter "where" you can to avoid reading too much data! 😉

We cover more performance tips like this in our Optimize Workspace Performance course.

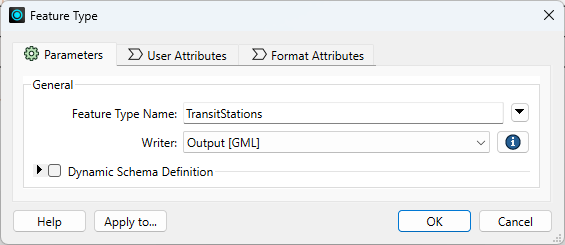

Some formats do not have any parameters, such as GML writer feature types:

It's worth exploring the options available to you based on the format. There are some very powerful feature type parameters. For example:

• The reader feature type WHERE Clause parameter (available for select formats) can restrict how much data FME reads, improving the performance of your workspace
• Most database format writer feature types have several parameters you can use to control database writing, including Feature Operation and Table Handling.
  • You can use the fme_db_operation to control Feature Operation, allowing you to Insert/Update/Upsert/Delete/etc, with a single writer feature type.

Cross-Operating System Compatibility

One important consideration in overall workspace design is cross-OS compatibility. Generally, FME is designed so your workspaces will run on any of our supported operating systems. However, there are a few best practices to keep in mind that could save you from problems in the future. These include:

• File paths
  • Because operating systems use different rules for file path construction, we recommend using the Directory and File Pathnames reader and FME user parameters to handle file paths wherever possible. Hardcoding paths is a sure-fire way to cause cross-OS compatibility issues
• Special characters
  • It's best practice to, at a minimum, avoid using non-printable characters (including ASCII control characters) and \/:*?"<>|, null, and / in your file and folder names. For more advice, see this thread.
• Case insensitivity
  • Databases might have different case expectations. For example, some databases allow myObject and myobject, while others reject these fields as duplicate violations. Assuming case insensitivity is the safest method.

⭐New in FME 2025.0: FME now offers enhanced control for managing table and column name formatting across all database formats. Users can choose to convert names to uppercase, lowercase, or keep the original case while ensuring compatibility across different database systems. Check out your database writers' Case Conversion writer parameters.

Exercise

Frank continues to work on his workspace, which reads community map data from an Esri geodatabase and writes it to GML and SQLite (parks only). However, the workspace needs several improvements:

• One of the community centers, "Mount Pleasant," is temporarily closed. Until a different department can correct the source data, you must prevent it from being written to the GML file.
• The team that uses the GML has been complaining that they don't like manually changing the file to use pretty printing when viewing the data. They've asked him to pretty print the data for easy reading.
• The City has announced an initiative to add indigenous language place names to City parks. He's been tasked with changing the park names in the SQLite database.
  • This is an imaginary scenario, but such initiatives do exist.

These can be accomplished using reader/writer/feature type parameters. Let's get to work!

1) Open Starting Workspace

• Start FME Workbench (FME 2026.1 or later).

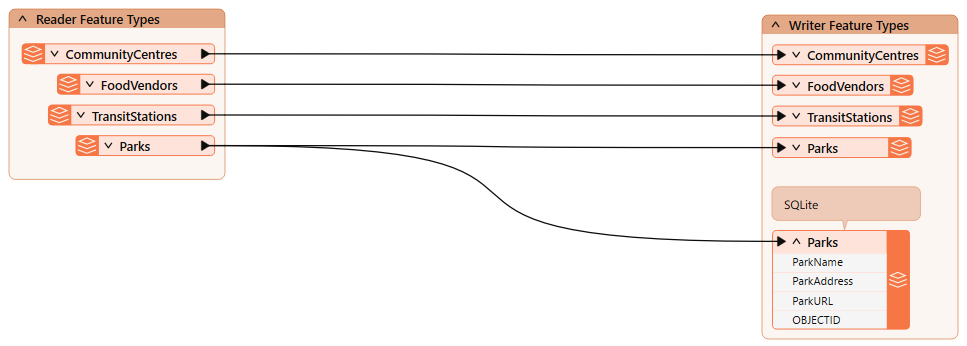

• Open the starting workspace, C:\FMEData\Workspaces\UseDataIntegrationBestPractices\set-reader-and-writer-parameters.fmw
• Run the workspace.

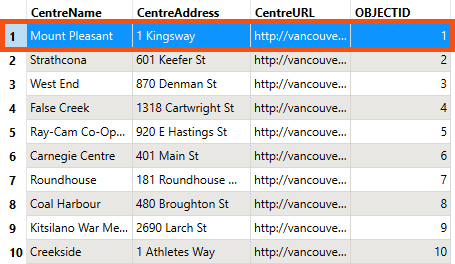

• Inspect the CommunityCentres reader feature type cache.
• Note that it has ten community centers, including the one we need to remove from the written data, Mount Pleasant.

2) Add a WHERE Clause Reader Feature Type Parameter

We can use a reader feature type parameter to remove the Mount Pleasant community center from the written data.

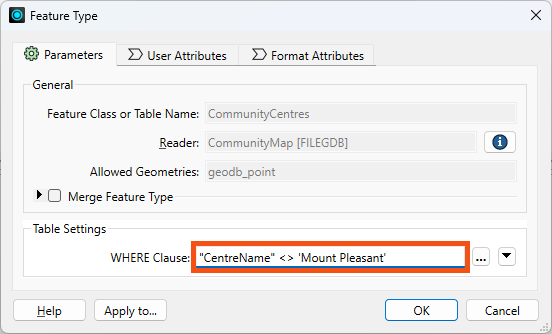

• Double-click the CommunityCentre reader feature type to open its parameters.
• Enter the following partial SQL statement for the WHERE Clause.

"CentreName" <> 'Mount Pleasant'

• Click OK.
• Run the workspace.

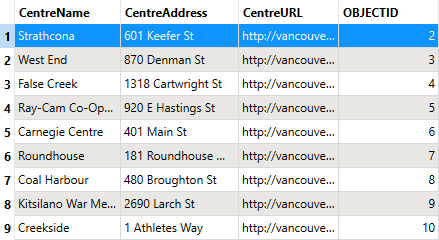

• Inspect the CommunityCentre reader feature type cache again.
• Confirm that FME did not read (or, therefore, write) the Mount Pleasant feature.

3) Change the GML Pretty Print Writer Parameter

Next, we need to fix the pretty print issue. First, let's view the data without pretty print.

• Click any one of the GML writer feature types.

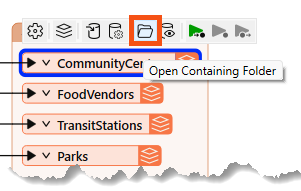

• Use the Open Containing Folder button to find the destination GML file.

• Open it in Notepad (or similar).
  • Note that the text does not use indentation to indicate nesting.

...
<gml:boundedBy>
<gml:Envelope srsName="EPSG:26910" srsDimension="3">
<gml:lowerCorner>486494.0932 5456045.6164 0</gml:lowerCorner>
<gml:upperCorner>494255.29509999976 5460601.212200001 0</gml:upperCorner>
</gml:Envelope>
</gml:boundedBy>
<gml:featureMember>
<fme:TransitStations gml:id="id0b91e990-57bb-4e58-8861-515334e2b534">
<fme:StationName>Waterfront</fme:StationName>
<fme:OBJECTID>1</fme:OBJECTID>
<gml:pointProperty>
<gml:Point srsName="EPSG:26910" srsDimension="2">
<gml:pos>491874.0992999999 5459264.233100001</gml:pos>
</gml:Point>
</gml:pointProperty>
</fme:TransitStations>
</gml:featureMember>
...

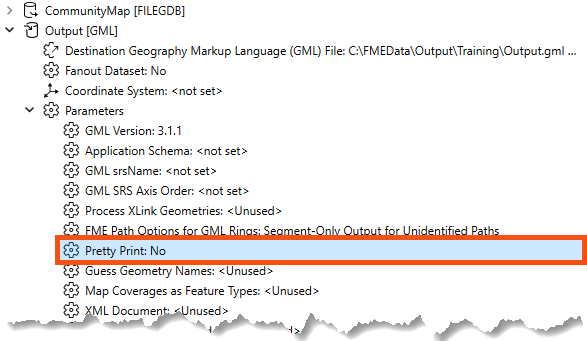

• Find the Output [GML] writer in the Navigator.
• Expand it to find its Parameters section,
• Expands the Parameters section to find the Pretty Print parameter.

• Double-click it to open the parameters dialog.

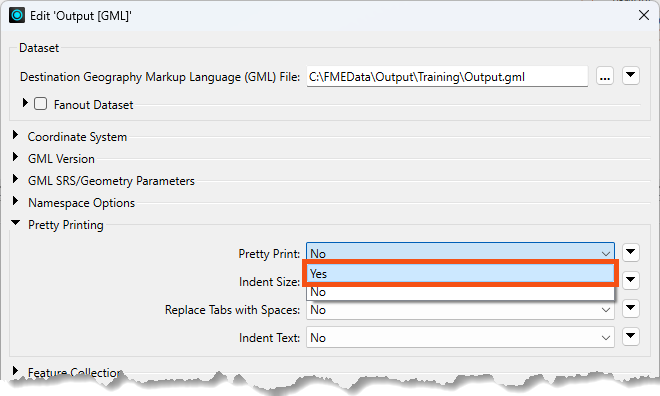

• Set Pretty Print to Yes.
  • Now, the written data will be pretty printed with indents.

• Run the workspace.
• Inspect the written GML file using Notepad to see the difference.
  • Note the indents.

...
<gml:boundedBy>
     <gml:Envelope srsName="EPSG:26910" srsDimension="2">
        <gml:lowerCorner>491133.7028000001 5456674.0671999995</gml:lowerCorner>
        <gml:upperCorner>494255.29509999976 5459264.233100001</gml:upperCorner>
    </gml:Envelope>
</gml:boundedBy>
<gml:featureMember>
    <fme:TransitStations gml:id="id5519c06b-d3d0-4b4c-92de-67caec9f13f1">
        <fme:StationName>Waterfront</fme:StationName>
        <fme:OBJECTID>1</fme:OBJECTID>
        <gml:pointProperty>
            <gml:Point srsName="EPSG:26910" srsDimension="2">
                <gml:pos>491874.0992999999 5459264.233100001</gml:pos>
            </gml:Point>
        </gml:pointProperty>
    </fme:TransitStations>
</gml:featureMember>
...

4) View Starting SQLite Data

The City has passed a law stating that indigenous language place names must be used alongside English names.

Doing so requires finding and editing features in the Parks SQLite database. To ensure the workspace edits features rather than creating new ones, we can use an important writer feature type parameter: fme_db_operation. We can do some testing to understand how this parameter works.

The starting workspace already has an SQLite writer and feature type. When we ran it earlier, we created the database.

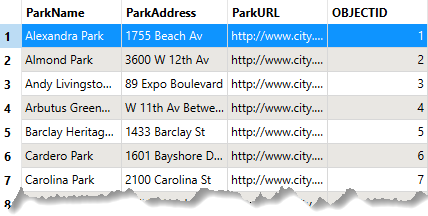

• Inspect the current state of the data by clicking the SQLite Parks writer feature type and clicking the View Written Data button.

• Observe that the database stores data about the parks.

5) Edit Writer Feature Type Parameter

Currently, a writer parameter, Overwrite Existing Database, is enabled. Therefore, FME creates the database from scratch each time it runs the workspace, ensuring it has the same number of records as the source data, no matter how many times it runs.

To see how fme_db_operation works, let's disable that writer parameter.

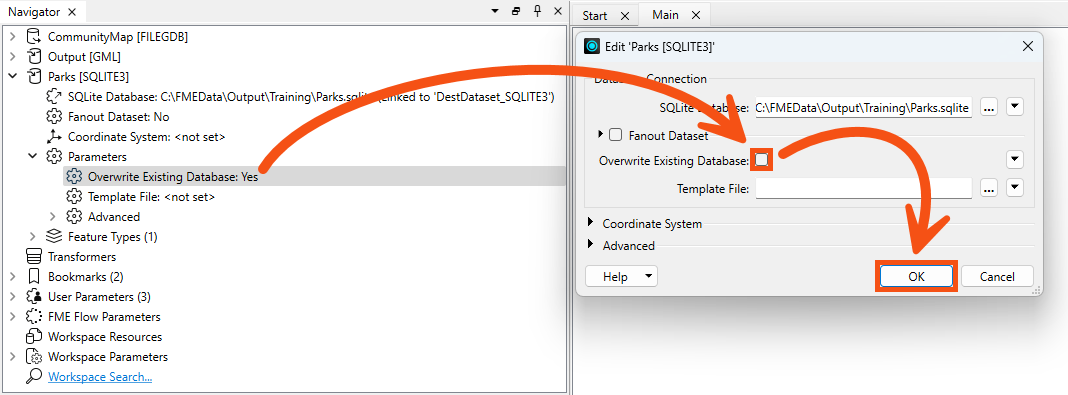

• Find the Overwrite Existing Database writer parameter in the Navigator and disable it (unchecked).
  • Now, if we were to run the workspace (don't!), we would append 69 records to the database. That's because the default database operation for FME writers is Insert.
  • If you do accidentally mess up the starting database while doing this exercise, you can always enable Overwrite Existing Database, Insert, and Create If Needed, and rerun the workspace to return to the starting state.

• Confirm this by double-clicking the Parks SQLite writer feature type.

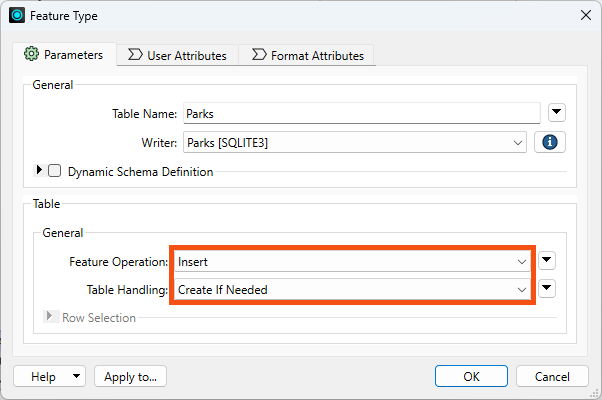

• Observe that General > Feature Operation is set to Insert and Table Handling is set to Create If Needed.

We can use this writer feature type parameter to update the names in the database.

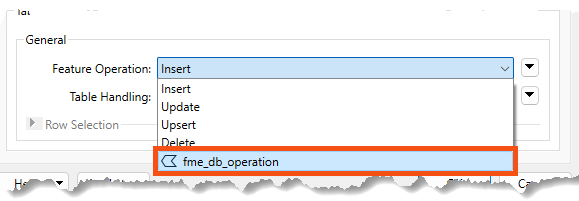

• Change Feature Operation to fme_db_operation.

Now we can use this attribute to specify the database operation per feature. Otherwise, the operation would be defined for the entire feature type.

When we makes this change, FME requires him to specify how features will be identified via the Row Selection > Match Columns parameter.

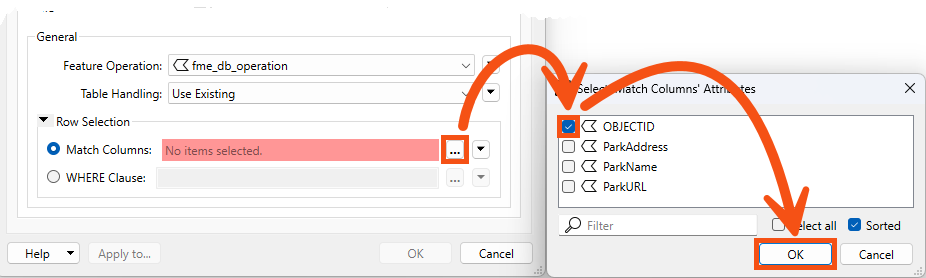

• Set the Row Selection > Match Columns writer feature type parameter to OBJECTID.
  • FME already generated this unique ID when it wrote the data originally, as it is a requirement of the format.

• Click OK twice to confirm the changes.

Now, the writer feature type will Insert/Update/Upsert/etc, based on the value of the fme_db_operation and OBJECTID attribute on incoming features.

6) Conduct an Update Database Feature Operation

We are ready to configure the workspace to change a park name using an Update feature operation.

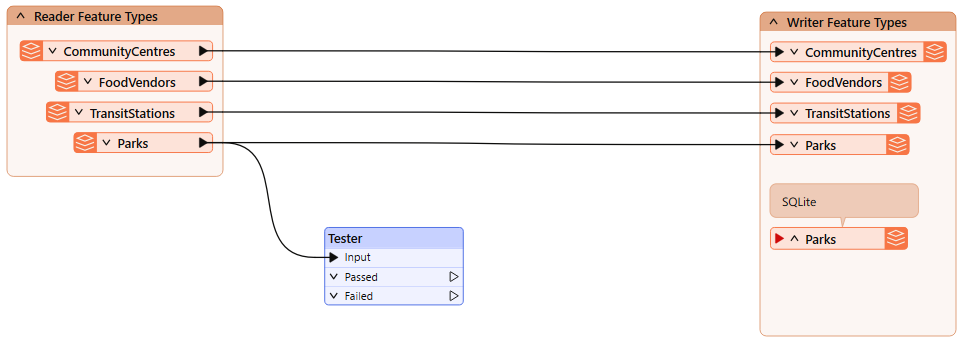

• Add a Tester connected to the Parks reader feature type.
  • Ensure it's not connected to the writer feature type yet! We don't want to write a feature to the database before we are ready.
  • If you are nervous about this, you can right-click the writer feature type and Disable it until you are ready to write. Just make sure to Enable it before writing.

We will update a single park name as a test for now.

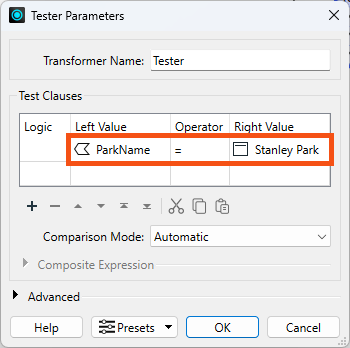

• Configure the Tester to pass features where ParkName = Stanley Park.

• Run the workspace.
• Inspect the Tester's Passed port cache.
• Confirm you now have a single feature with ParkName = Stanley Park.

7) Configure fme_db_operation

Now that we have a single test feature, let's setup the feature we'll use to edit the database.

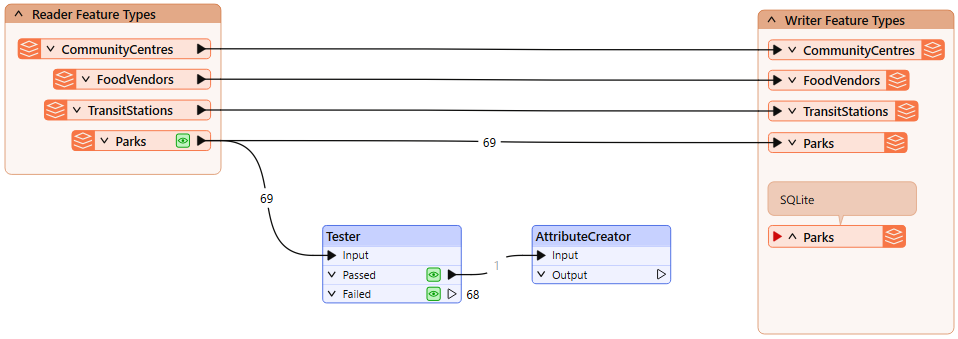

• Add an AttributeCreator after the Tester.

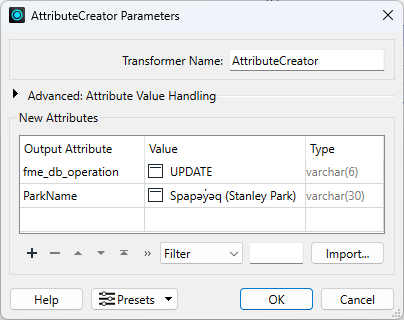

• Configure it like this.

Spapəy̓əq roughly translates to "bent at the end" in Hunquminum, the language spoken by the Musqueam First Nation. It refers to a specific part of the area now known as Stanley Park, Brockton Point. The phonetic pronunciation is "spah-pee-ahk."

Learn more from the City of Vancouver or the Vancouver Heritage Foundation.

• Click OK.

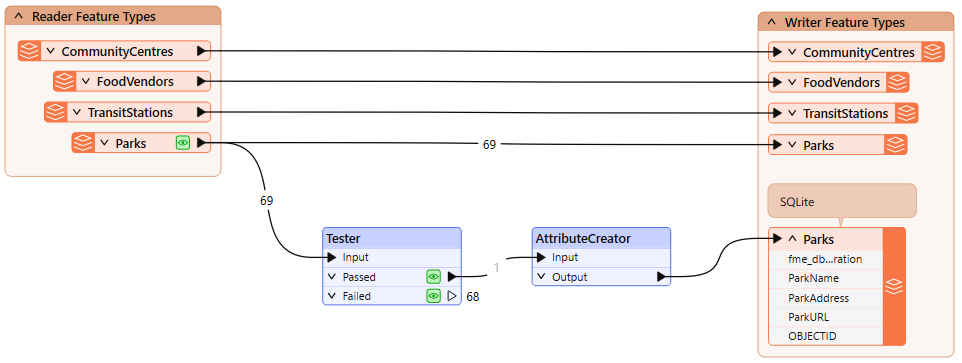

• Connect the AttributeCreator to the Parks SQLite writer feature type.

8) Run the Workspace

• Run the workspace
• Inspect the written data.

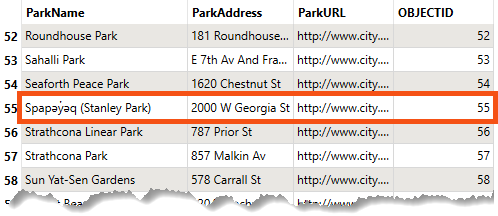

• Confirm that there are still only 69 features, but the feature with OBJECTID = 55 now has ParkName = Spapəy̓əq (Stanley Park), successfully updated in-place using a writer feature type parameter.

Using this method, we can control the database operation performed at the feature level. That's the power of parameters!

We could get the same output data using the parameters we started with: Insert, Create as Needed, and Overwrite Existing Database. However, that only works if you want to write the entire table each time. If you want to update specific records each time the workspace runs, for example, loading new or changed records every 10 minutes, you would have to use the fme_db_operation parameter.
